Camlock Couplings: A Quick Guide to Types, Materials, and Applications
Camlock couplings, also known as cam and groove fittings, are quick-connect devices used to rapidly join hoses and pipes without tools. Widely used across industries for their speed and versatility, understanding the different types and materials is essential for correct application.
- The Six Types of Camlock Fittings
Camlock fittings come in six standard configurations designated Type A through F. Type A features a male threaded adapter; Type B is a female threaded coupler; Type C is a female threaded adapter; Type D is a female threaded coupler; Type E is a male adapter with hose shank; and Type F is a female coupler with hose shank. Each type provides different connection combinations to suit specific hose and pipe setups.
- Materials: Aluminium, Stainless Steel, and Polypropylene

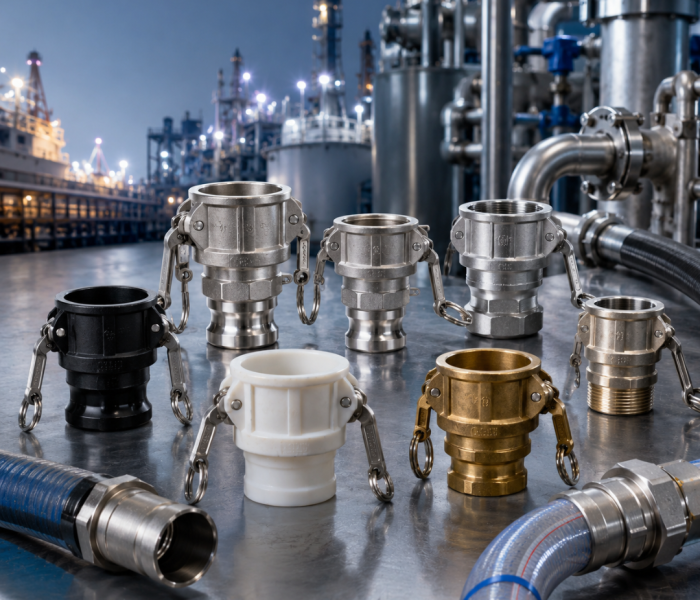

Camlock couplings are available in aluminium (lightweight, general use), stainless steel 316 (corrosion-resistant, food-grade and chemical applications), carbon steel, brass, and polypropylene. Material selection should match the fluid, temperature, and operating environment to ensure chemical compatibility and long service life.
- Pressure and Temperature Ratings
Standard aluminium camlock couplings handle pressures up to 250 PSI depending on size, while stainless steel versions typically exceed this rating. Temperature limits vary by material and seal type. Always verify that the coupling’s pressure and temperature ratings are appropriate for the intended service conditions.
