Flanges and Gaskets: Getting the Combination Right

A flanged joint’s performance depends on the correct combination of flange face type, gasket material and type, bolt load, and installation procedure. Even high-quality flanges can leak if the wrong gasket is selected or if the gasket does not receive sufficient seating stress.

For industries such as oil and gas, petrochemicals, power generation, water treatment, marine, and general process engineering, proper flange and gasket selection is essential for maintaining pressure integrity and preventing fluid leakage. Understanding how these components work together helps engineers, maintenance teams, and procurement professionals select reliable sealing solutions for their applications

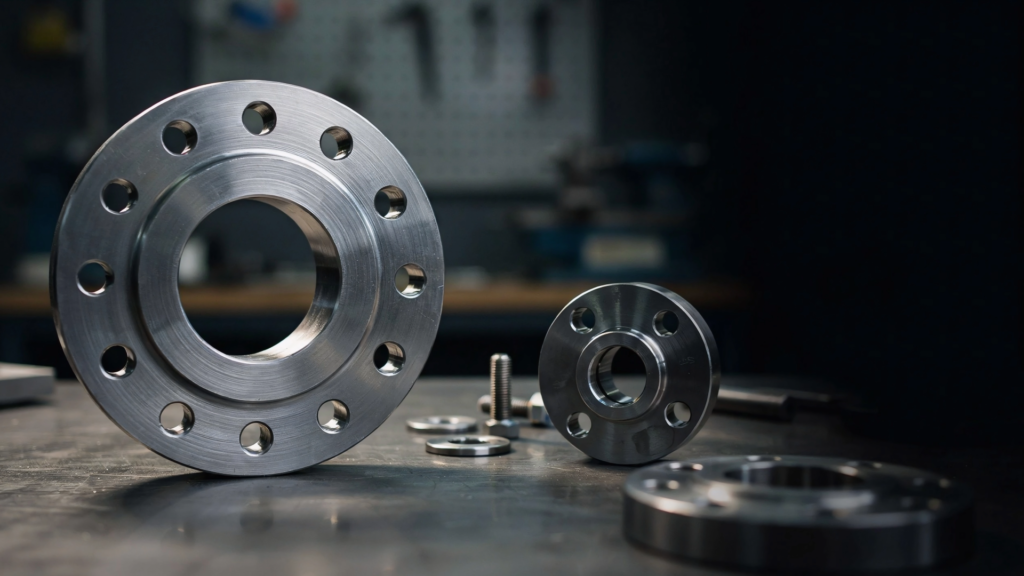

Raised face flanges use spiral wound or ring gaskets sized to fit within the raised face area. Flat face flanges require full-face gaskets that extend to the bolt holes. Ring type joint flanges require metallic ring gaskets (oval or octagonal) that fit precisely in the machined groove. Using a gasket intended for one face type on an incompatible flange face will result in poor seating and leakage.

are commonly used in industrial piping systems. Spiral wound gaskets, compressed fiber gaskets, and other suitable gasket types can be selected according to the pressure, temperature, and media. The gasket should be correctly sized so that it sits evenly on the sealing surface without interfering with the pipe bore

generally require full-face gaskets. These gaskets extend across the entire flange face and include bolt-hole openings. Using a gasket designed specifically for a flat-face connection helps distribute bolt load more evenly and reduces the risk of flange damage

use metallic ring gaskets installed into precision-machined grooves. Oval and octagonal RTJ rings are commonly used for demanding high-pressure and high-temperature applications. The gasket and groove dimensions must correspond precisely to ensure proper metal-to-metal sealing

Selecting the correct gasket for the flange facing is therefore not simply a matter of matching dimensions. The gasket design, material, thickness, hardness, and sealing characteristics must also be appropriate for the service conditions

Bolt load is one of the most important factors influencing gasket performance. A gasket must be compressed sufficiently to conform to microscopic irregularities on the flange surfaces and create a continuous sealing barrier.

Gasket design calculations consider factors such as gasket seating stress and the pressure that will be experienced during operation. ASME design methodologies, including those historically associated with Appendix 2 calculations, can be used for appropriate flange and bolting design

If the applied bolt load is too low, the gasket may not seal properly. If the load is excessive, the gasket may be crushed or the flange may become distorted.

For this reason, bolts should generally be tightened using a controlled procedure rather than simply tightening them as much as possible. A cross-pattern or star-pattern sequence is commonly used to distribute the load progressively across the flange.

For critical applications, controlled torque tightening or tensioning equipment may be used to achieve more consistent bolt loading

Gasket selection must also consider the fluid being handled and the operating environment.

Graphite-based gaskets are widely used in applications involving elevated temperatures and many industrial fluids. Spiral wound gaskets with graphite filler are frequently selected for steam, hydrocarbons, and process services where their temperature resistance and compressibility are advantageous.

PTFE gaskets are known for their strong chemical resistance and can be suitable for aggressive chemical services. However, their allowable operating temperature, pressure, and creep characteristics must be considered before selection.

Metallic RTJ gaskets are particularly suitable for high-pressure and high-temperature services where conventional soft gaskets may not provide the required sealing performance.It is important not to select a gasket solely because it is rated for a particular temperature. Chemical compatibility, pressure, flange material, cycling conditions, gasket thickness, and installation requirements should all be evaluated.

Even the correct gasket can fail when the flange sealing surface is damaged or contaminated.

Scratches, corrosion, dents, warping, excessive surface roughness, or foreign particles can prevent the gasket from making uniform contact. Before installation, flange faces should therefore be inspected and cleaned.

The required surface finish depends on the flange and gasket type. A surface that is too smooth may not provide sufficient mechanical engagement for certain gasket designs, while an excessively rough surface can make sealing difficult.

Flanges should also be aligned correctly before bolts are tightened. Forcing misaligned flanges together with excessive bolt load can introduce unwanted stresses and create an uneven gasket load

Several installation and operating problems can contribute to flange leakage. Common causes include:

Incorrect gasket type or dimensions
Incompatible gasket material
Insufficient bolt load
Excessive or uneven bolt tightening
Incorrect tightening sequence
Damaged flange sealing surfaces
Flange misalignment
Reusing gaskets that are intended for single installation
Pipe loads or vibration affecting the joint
Thermal expansion and contraction
Pressure and temperature cycling
Corrosion of flange or bolting components

Leakage can become particularly serious when the fluid is hazardous, flammable, corrosive, or maintained at high pressure. Preventive inspection and appropriate maintenance procedures are therefore important for critical piping systems

Reliable sealing begins before the gasket is installed. The flange faces should be cleaned and inspected, and the gasket should be checked for damage, contamination, or incorrect dimensions. The gasket should be positioned accurately without excessive stretching or distortion. Bolts should be inspected for suitable condition and compatibility with the flange assembly. During tightening, the recommended sequence and torque values should be followed. Multiple tightening passes can help achieve more uniform bolt loading. For critical systems, calibrated torque tools or hydraulic tensioning equipment may provide better control. After installation, the joint should be inspected according to the applicable project and safety procedures. In demanding services, periodic inspection can help identify corrosion, bolt loosening, gasket degradation, or other conditions that could eventually result in leakage

Flanges and gaskets are often sourced as separate components, but treating them as a complete sealing system can simplify procurement and reduce compatibility problems. A knowledgeable supplier can help customers select suitable flange and gasket combinations based on nominal size, pressure class, flange facing, material grade, temperature, fluid characteristics, and applicable standards. For projects involving multiple piping components, working with a supplier capable of providing both products can also simplify documentation, quality control, and logistics

Getting the combination of flanges and gaskets right is essential for creating a safe and reliable piping connection. The flange face, gasket type, material, bolt load, surface condition, operating temperature, pressure, and process fluid must all be considered together. OIS Middle East supplies flanges and gaskets for industrial piping and process applications, providing customers with a convenient single-source solution for their sealing requirements. Contact OIS Middle East to discuss your application and identify suitable flange and gasket combinations for your project
